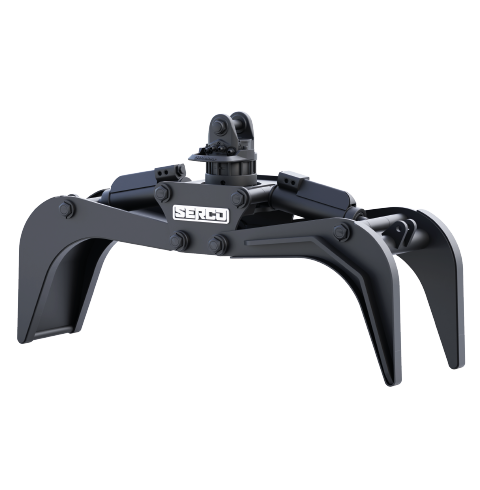

Bypass Grapple

| | | | |

-180° 180°

Serco Bypass Grapples Are Designed & Ideal For Forestry Applications. Our Bypass Grapples Are Available In a Variety Of Sizes.

Precise Handling
Best Suited For Small Trees & Logs

Download selling sheet

PRODUCT SPECIFICATIONS

TECHNICAL SPECIFICATIONS

Model	SBG050- 1/3
Max Opening in (mm)	51 (1,289)
Min Opening in (mm)	4.81 (122)
Area Tip-To-Tip ft² (m²)	2.54 (0.24)
Volume In Cord 8ft (m²)	0.16 (0.58)
Cylinder Size in (mm)	3 (76)
Cylinder Max. Pressure PSI (bar)	3,825 (264)
Weight lb (kg)	575 (261)
Continous Rotation	Yes
Dealer Reference	5012259

Download Literature

Model	SBG056- 1/3
Max Opening in (mm)	56 (1,422)
Min Opening in (mm)	8.5 (217)
Area Tip-To-Tip ft² (m²)	4.69 (0.44)
Volume In Cord 8ft (m²)	0.29 (1.06)
Cylinder Size in (mm)	3.5 (89)
Cylinder Max. Pressure PSI (bar)	3,375 (233)
Weight lb (kg)	950 (431)
Continous Rotation	Yes
Dealer Reference	680946

Download Literature

Model	SBG057- 1/3
Max Opening in (mm)	57 (1,440)
Min Opening in (mm)	9.75 (217)
Area Tip-To-Tip ft² (m²)	4.67 (0.43)
Volume In Cord 8ft (m²)	0.29 (1.06)
Cylinder Size in (mm)	3.5 (89)
Cylinder Max. Pressure PSI (bar)	3,375 (233)
Weight lb (kg)	830 (376)
Continous Rotation	No
Dealer Reference	680901

Download Literature

Model	SBG053- 1/3 LBC
Max Opening in (mm)	53 (1,344)
Min Opening in (mm)	10.25 (260)
Area Tip-To-Tip ft² (m²)	4.95 (0.46)
Volume In Cord 8ft (m²)	0.31 (1.12)
Cylinder Size in (mm)	4 (102)
Cylinder Max. Pressure PSI (bar)	4,200 (290)
Weight lb (kg)	1,730 (785)
Continous Rotation	Yes
Dealer Reference	680899

Download Literature

Model	SBG055- 1/4
Max Opening in (mm)	55 (1,403)
Min Opening in (mm)	5.6 (142)
Area Tip-To-Tip ft² (m²)	3.55 (0.33)
Volume In Cord 8ft (m²)	0.22 (0.8)
Cylinder Size in (mm)	3.5 (89)
Cylinder Max. Pressure PSI (bar)	3,375 (233)
Weight lb (kg)	720 (327)
Continous Rotation	No
Dealer Reference	680895

Download Literature

Model	SBG053- 1/4
Max Opening in (mm)	55 (1,403)
Min Opening in (mm)	8 (203)
Area Tip-To-Tip ft² (m²)	3.64 (0.33)
Volume In Cord 8ft (m²)	0.23 (0.82)
Cylinder Size in (mm)	3.5 (89)
Cylinder Max. Pressure PSI (bar)	3,375 (233)
Weight lb (kg)	660 (300)
Continous Rotation	No
Dealer Reference	680831

Download Literature

Model	SBG053- 1/4 Dual Arm
Max Opening in (mm)	53 (1,348)
Min Opening in (mm)	7.75 (197)
Area Tip-To-Tip ft² (m²)	3.64 (0.34)
Volume In Cord 8ft (m²)	0.23 (0.82)
Cylinder Size in (mm)	3.5 (89)
Cylinder Max. Pressure PSI (bar)	3,375 (233)
Weight lb (kg)	840 (381)
Continous Rotation	Yes
Dealer Reference	681015

Download Literature

Model	SBG053- 1/4 Single Arm
Max Opening in (mm)	53 (1,348)
Min Opening in (mm)	7.75 (197)
Area Tip-To-Tip ft² (m²)	3.64 (0.34)
Volume In Cord 8ft (m²)	0.23 (0.82)
Cylinder Size in (mm)	3.5 (89)
Cylinder Max. Pressure PSI (bar)	3,375 (233)
Weight lb (kg)	830 (376)
Continous Rotation	Yes
Dealer Reference	681021

Download Literature

Model	SBG053- 1/4 Hardox Arm
Max Opening in (mm)	53 (1,348)
Min Opening in (mm)	7.75 (197)
Area Tip-To-Tip ft² (m²)	3.64 (0.34)
Volume In Cord 8ft (m²)	0.23 (0.82)
Cylinder Size in (mm)	3.5 (89)
Cylinder Max. Pressure PSI (bar)	3,375 (233)
Weight lb (kg)	840 (381)
Continous Rotation	Yes
Dealer Reference	5017306

Download Literature

Model	SBG053- 1/4 South Dakota
Max Opening in (mm)	53 (1,348)
Min Opening in (mm)	7.75 (197)
Area Tip-To-Tip ft² (m²)	3.64 (0.34)
Volume In Cord 8ft (m²)	0.23 (0.82)
Cylinder Size in (mm)	3.5 (89)
Cylinder Max. Pressure PSI (bar)	3,375 (233)
Weight lb (kg)	720 (327)
Continous Rotation	Yes
Dealer Reference	680940

Download Literature

Model	SBG068- 1/4
Max Opening in (mm)	68 (1,720)
Min Opening in (mm)	7.63 (194)
Area Tip-To-Tip ft² (m²)	4.17 (0.39)
Volume In Cord 8ft (m²)	0.26 (0.94)
Cylinder Size in (mm)	3.5 (89)
Cylinder Max. Pressure PSI (bar)	3,375 (233)
Weight lb (kg)	822 (373)
Continous Rotation	Yes
Dealer Reference	680942

Download Literature
