Pulpwood Grapple

product--img

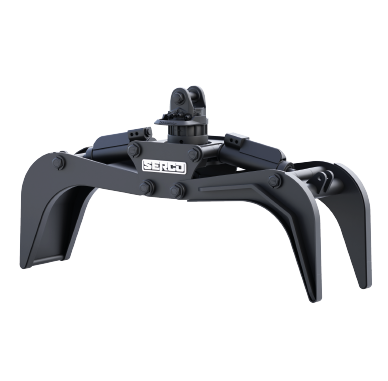

Serco Pulpwood Grapple
Serco Pulpwood Grapple

SPG Series

The Serco Pulpwood Grapple is designed for handling short wood lengths in forestry, logging, and mill applications. This pulwood grapple is a butt style grapple that offers exceptional rolling of logs.

  • Designed for exceptional rolling of logs.
  • Continuous Rotation.
  • 1/4 cord and 1/3 cord models available.
  • Made in the U.S.A.

PRODUCT SPECIFICATIONS

The Serco Pulpwood grapple is designed for users in forestry, logging, and mill applications who handle short wood. The Serco Pulpwood Grapple features butt-style arms with an arm profile that allows for smooth rolling of logs as well as precise handling of individual logs. Available in 1/4 cord and 1/3 cord models.

TECHNICAL SPECIFICATIONS

Model SPG093- 1/2 SBC
Max Opening in (mm) 93.5 (2,370)
Min Opening in (mm) 41.25 (1,048)
Area Tip-To-Tip ft2 (m2) 8.02 (1.82)
Volume In Cord 8ft (m2) 0.5 (1.82)
Cylinder Size in (mm) 4 (102)
Cylinder Max. Pressure PSI (bar)       4,200 (290)
Weight lb (kg) 1,513 (686)
Continous Rotation Yes
Dealer Reference 681042

Download Literature

Model SPG093- 1/2 SBC/BB
Max Opening in (mm) 93.5 (2,370)
Min Opening in (mm) 41.25 (1,048)
Area Tip-To-Tip ft2 (m2) 8.02 (1.82)
Volume In Cord 8ft (m2) 0.5 (1.82)
Cylinder Size in (mm) 4 (102)
Cylinder Max. Pressure PSI (bar) 4,200 (290)
Weight lb (kg) 1,581 (717)
Continous Rotation Yes
Dealer Reference 5019054
Download Literature
Model SPG074- 1/3 BB
Max Opening in (mm) 74 (1,878)
Min Opening in (mm) 31 (790)
Area Tip-To-Tip   ft2 (m2 4.69 (0.44)
Volume In Cord 8ft (m2) 0.29 (1.05)
Cylinder Size in (mm) 3.5 (89)
Cylinder Max. Pressure PSI (bar) 3,375 (233)
Weight lb (kg) 860 (390)
Continous Rotation No
Dealer Reference 680893
Download Literature
Model SPG074- 1/3 Hardox/Weldox
Max Opening in (mm) 74 (1,878)
Min Opening in (mm) 31 (790)
Area Tip-To-Tip ft2 (m2) 4.69 (0.44)
Volume In Cord 8ft (m2) 0.29 (1.06)
Cylinder Size in (mm) 3.5 (89)
Cylinder Max. Pressure PSI (bar)  3,375 (233)
Weight lb (kg) 799 (362)
Continous Rotation No
Dealer Reference 5017881
Model SPG077- 1/3 Hardox
Max Opening in (mm) 77.5 (1,966)
Min Opening in (mm) 35 (881)
Area Tip-To-Tip ft2 (m2) 5.69 (0.53)
Volume In Cord 8ft (m2) 0.36 (1.29)
Cylinder Size in (mm) 3.5 (89)
Cylinder Max. Pressure PSI (bar) 3,375 (233)
Weight lb (kg) 828 (376)
Continous Rotation No
Dealer Reference 5016820
Model SPG070- 1/3 BB
Max Opening in (mm) 70 (1,780)
Min Opening in (mm) 31 (789)
Area Tip-To-Tip ft2 (m2) 4.72 (0.44)
Volume In Cord 8ft (m2) 0.3 (1.07)
Cylinder Size in (mm) 3.5 (89)
Cylinder Max. Pressure PSI (bar) 3,375 (233)
Weight lb (kg) 985 (447)
Continous Rotation Yes
Dealer Reference 681005
Model SPG069 1/3
Max Opening in (mm) 69.5 (1,765)
Min Opening in (mm) 31 (790)
Area Tip-To-Tip ft2 (m2) 4.72 (0.44)
Volume In Cord 8ft (m2) 0.29 (1.05)
Cylinder Size in (mm) 3.5 (89)
Cylinder Max. Pressure PSI (bar) 3,375 (233)
Weight lb (kg) 899 (408)
Continous Rotation Yes
Dealer Reference 5005093
Model SPG
Max Opening in (mm) 77.5 (1,966)
Min Opening in (mm) 35 (881)
Area Tip-To-Tip ft2 (m2) 5.69 (0.53)
Volume In Cord 8ft (m2) 0.36 (1.29)
Cylinder Size in (mm) 3.5 (89)
Cylinder Max. Pressure PSI (bar) 3,375 (233)
Weight lb (kg) 933 (423)
Continous Rotation Yes
Dealer Reference 5017881
Model SPG070- 1/3
Max Opening in (mm) 70 (1,768)
Min Opening in (mm) 31 (790)
Area Tip-To-Tip ft2 (m2) 4.72 (0.44)
Volume In Cord 8ft (m2) 0.3 (1.07)
Cylinder Size in (mm) 3.5 (89)
Cylinder Max. Pressure PSI (bar) 3,375 (233)
Weight lb (kg) 925 (420)
Continous Rotation Yes
Dealer Reference 680974
Download Literature
Model SPG069- 1/4 BB
Max Opening in (mm) 69.5 (1,764)
Min Opening in (mm) 26.25 (667)
Area Tip-To-Tip ft2 (m2) 3.56 (0.33)
Volume In Cord 8ft (m2) 0.22 (0.8)
Cylinder Size in (mm) 3.5 (89)
Cylinder Max. Pressure PSI (bar) 3,375 (233)
Weight lb (kg) 710 (322)
Continous Rotation No
Dealer Reference 680875
Model SPG070- 1/4 BB
Max Opening in (mm) 70 (1,781)
Min Opening in (mm) 26.25 (667)
Area Tip-To-Tip ft2 (m2) 3.65 (0.34)
Volume In Cord 8ft (m2) 0.23 (0.83)
Cylinder Size in (mm) 3.5 (89)
Cylinder Max. Pressure PSI (bar) 3,375 (233)
Weight lb (kg) 800 (362)
Continous Roation Yes
Dealer Reference 681003

COMPATIBILITY

  • Compatible with all Serco Knuckleboom Loaders.
  • Customizable to fit other loader models.

Options

  • 1/4 cord and 1/3 cord models
  • Load Lock Cylinders
  • Bang Boards
  • Rotator Fitting Guards
