Log Grapple

product--img

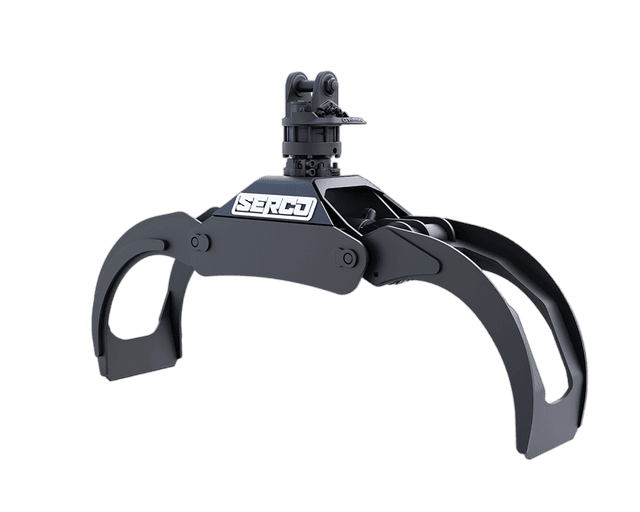

Serco Log Grapple
| | | | |
-180° 180°
Serco Log Grapple

SLG Series

The Serco Log Grapple is designed for forestry, logging and pole handling applications. Its design features bypassing arms which offer exceptional rolling of logs and precise handling of individual logs and utility poles.

  • Designed for exceptional rolling of logs and utility poles.
  • Continuous Rotation.
  • 35", 42", 46", and 52" models available.
  • Made in the U.S.A.

PRODUCT SPECIFICATIONS

The Serco Log Grapple is designed for users in forestry, logging, and pole handling industries. The Serco Log Grapple features bypassing arms with an arm profile that allows for smooth rolling of logs as well as precise handling of individual logs and utility poles. Available in 35", 42", 46", and 52" models.


TECHNICAL SPECIFICATIONS

Model SLG035
Max Opening in (mm) 35 (895)
Min Opening in (mm) 3.5 (89)
Area Tip-To-Tip ft2 (m2) 1.28 (0.12)
Volume In Cord 8ft (m2) 0.08 (0.29)
Cylinder Size in (mm) 3.5 (89)
Cylinder Max. Pressure PSI (bar) 3,375 (233)
Weight lb (kg) 650 (295)
Continous Rotation Yes
Dealer Reference 5011004
Model SLG042
Max Opening in (mm) 42 (1,072)
Min Opening in (mm) 3.75 (95)
Area Tip-To-Tip ft2 (m2) 2.7 (0.25)
Volume In Cord 8ft (m2) 0.17 (0.62)
Cylinder Size in (mm) 3.5 (89)
Cylinder Max. Pressure PSI (bar) 2,900 (199.5)
Weight lb (kg) 900 (408)
Continous Rotation Yes
Dealer Reference 680998
Model SLG042- LL
Max Opening in (mm) 42 (1,072)
Min Opening in (mm) 3.75 (95)
Area Tip-To-Tip ft2 (m2) 2.7 (0.25)
Volume In Cord 8ft (m2) 0.17 (0.62)
Cylinder Size in (mm) 3.5 (89)
Cylinder Max. Pressure PSI (bar) 2,900 (199.5)
Weight lb (kg) 839 (381)
Continous Rotation Yes
Dealer Reference 5009948
Model SLG046
Max Opening in (mm) 46 (1,168)
Min Opening in (mm) 4.75 (121)
Area Tip-To-Tip ft2 (m2) 2.59 (0.24)
Volume In Cord 8ft (m2) 0.16 (0.59)
Cylinder Size in (mm) 3.5 (89)
Cylinder Max. Pressure PSI (bar) 3,375 (233)
Weight lb (kg) 690 (313)
Continous Rotation No
Dealer Reference 680825
Model SLG046
Max Opening in (mm) 46.5 (1,181)
Min Opening in (mm) 5.7 (145)
Area Tip-To-Tip ft2 (m2) 2.59 (0.24)
Volume In Cord 8ft (m2) 0.16 (0.59)
Cylinder Size in (mm) 3.5 (89)
Cylinder Max. Pressure PSI (bar) 3,375 (233)
Weight lb (kg) 780 (354)
Continous Rotation Yes
Dealer Reference 680934
Model SLG052- LBC
Max Opening in (mm) 52 (1,323)
Min Opening in (mm) 5.95 (151)
Area Tip-To-Tip ft2 (m2) 4.45 (0.41)
Volume In Cord 8ft (m2) 0.28 (1.01)
Cylinder Size in (mm) 4 (102)
Cylinder Max. Pressure PSI (bar) 4,200 (290)
Weight lb (kg) 1,920 (871)
Continous Rotation Yes
Dealer Reference 680979

COMPATIBILITY

  • Compatible with all Serco Knuckleboom Loaders.
  • Customizable to fit other loader models.

Options

  • 35", 42", 46", and 52" models
  • Load Lock Cylinders
  • Bang Boards
  • Rotator Fitting Guards
